Product Details
To see video: https://youtu.be/6H-U3An4Vtg
|
Parameters |
|
|
Size |
43 inch |
|
Model |
AIOC43 |
|
Installation |
K type base |
|
Infrared touch |
Standard 10 points |
|

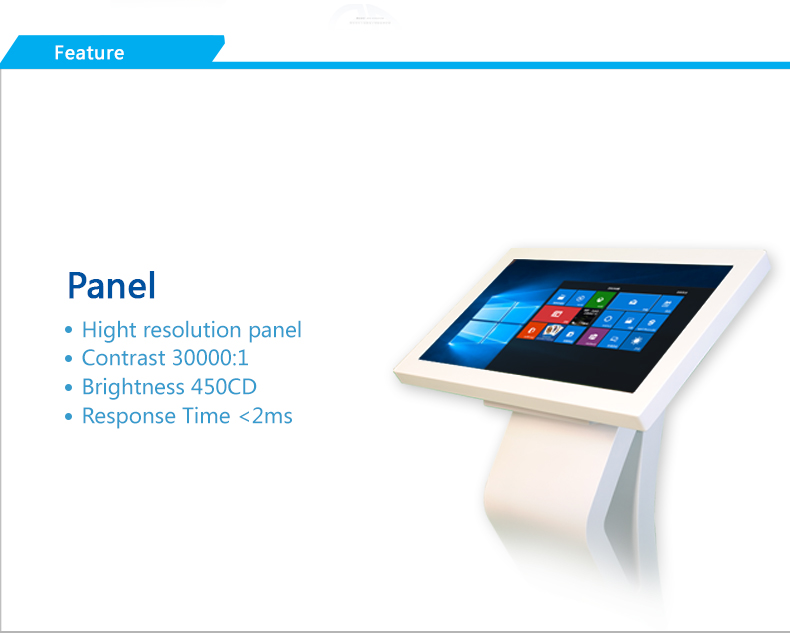

Panel |
LCD |
|
Display area |
1037.68H*582.82Vmm |
|
Pixel pitch |
0.5415H*0.5415Vmm |
|
Aspect ratio |
16:9 |
|
Contrast ratio |
4000:1 |
|
Resolution |
1920(RGB)*1080(FHD) |
|
Brightness |
450cd/m2 |
|
Color |
16.7M |
|
View angel |
178¡ã/178¡ã(L/R/U/D) |
|
Response time |
5ms |
|
Life time |
More than 50000hours |
|
Frame color |
White,Black,Silver |
|
Frame material |

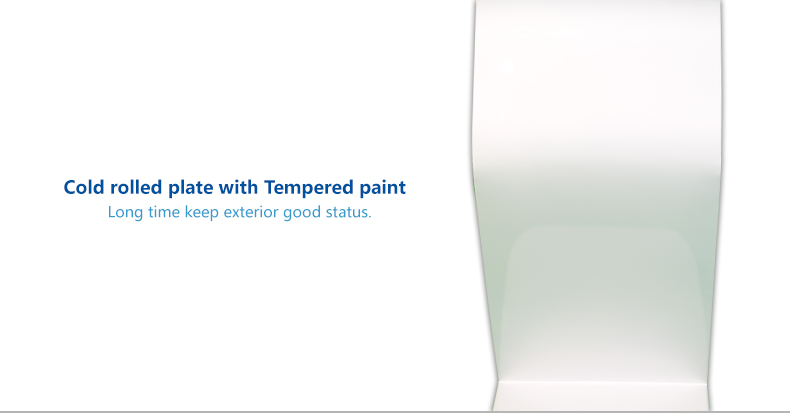

Toughened glass, aluminum alloy frame, cold rolled steel plate on the back, surface baking paint |
|

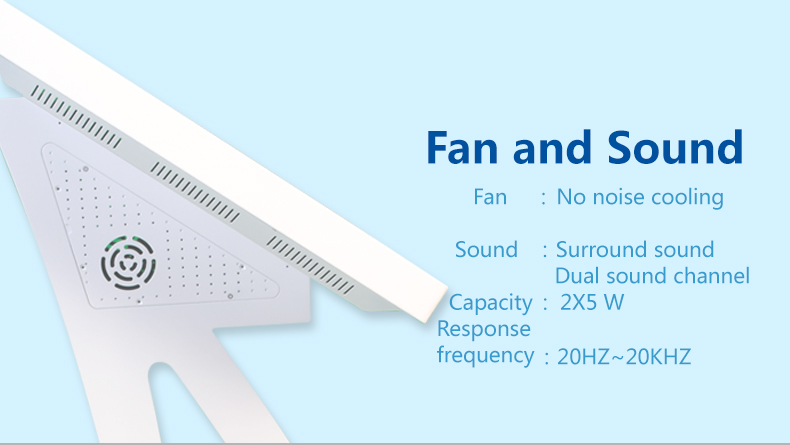

Multimedia stereo sound |
Rating Power:10W*2; Peak power:15W*2 |
|
Overall Power loss |
¡Ü250W |
|
Standby Power loss |
<3W |
|
Input voltage |
AC110-240V |
|
Operating temperature |
0--50¡ãC |
|
Storage Temperature |
-20--60¡ãC |
|
Operating humidity |
10%-85% |
|
Storage humidity |
10%-85% |
|
Screen size and weight (in cartons) |
1180*730*140mm & 42kg |
|
Base size and weight (in cartons) |
490*460*1050mm & 18kg |
|
Power standard |
VESA DPMS |
|
Quality standard |
ISO9001 |
|
Environmental protection |
International environmental standards |
|
Infrared touch panel parameters |
|
|
Touch points |
6,10(optional) |
|
Resolution |
4096*4096 |
|
Transmittance |
Toughened glass,transmittance¡Ý95% |
|
Minimum touch unit |
2.5mm |
|
Touch medium |
An opaque object, such as a finger or a stylus |
|
Scan rate |
50scans/s |
|
Response time |
<16ms |
|
Power supply mode |
USB DC |
|
Noise |
N |
|
System |
Win7/Win8/Xp/VISTA/Linux |
|
Response mode |
Automatic system identification |
|
Mouse speed |
¡Ý120 point/s |
|
Touch property |
No float,no change with the environment |
|
Mainframe(optional) |
|
|
CPU |
PC advanced custom quad core3.2 |
|
Hard Disk |
Standard 128G SSD |
|
Internal storage |
Standard 4G(Maximum 16G) |
|
Interface |
1xVGA,1x, 4xUSB,1xlan port, 1x audio output, 1x microphone Wi-Fi |
|
Mainboard |
Low power industrial control mainboard |
|
Network card |
Built in Gigabit Ethernet card |
|
Graphics card |
Integrated |
|
Audio |
Integrated |
|
System |
Android |
Fearture:
1. Adjustable touch special base.
2. Multi touch, maximum support 36 touch
3. Support software updating, new function can be
customized according to customer¡¯s needs.
4. The environment request is not high, high
sensitivity. Suitable for all kinds of environments
5. Touch one machine can be three-dimensional
model of the object dynamic display, with a good interactive experience
6. With a protection layer of ultrathin, high
light, perfectly clear tempered glass on the surface of the LCD screen to
protect the screen being damaged.
7. Touch technology, support USB interface, touch
screen, support handwriting input function, and with other software,
whiteboard, drawing and other interactive functions can be realized.
